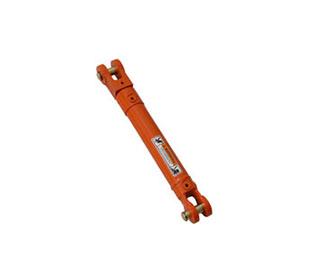

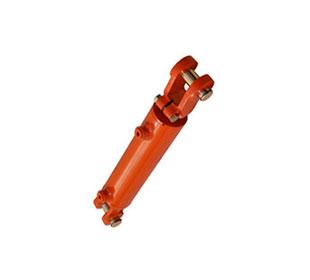

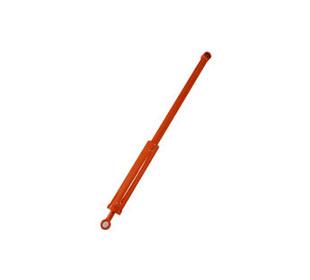

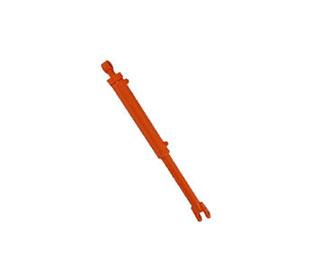

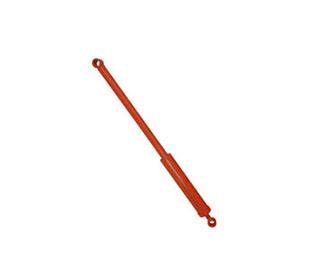

Welded Cylinders

Our Welded Cylinders are one of the best in the world, at the core of the finest retail welded cylinders resides SEA Hydro System’s innovation, quality and passion. Our welded cylinders can be found in agricultural equipments, trailers, compact construction equipments and recycling equipments.

Start with the customer – find out what they want and give it to them.

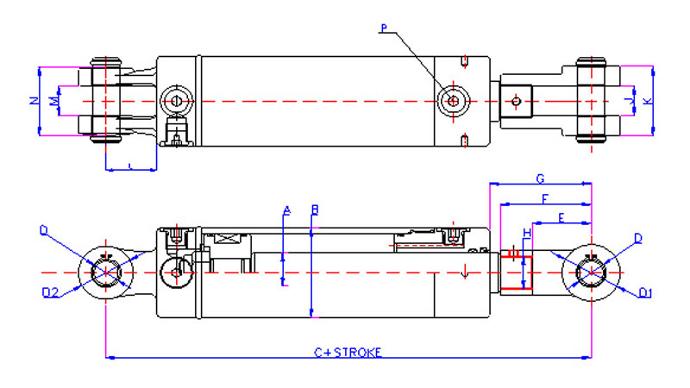

Bore	A	B	C	D	D1	D2	E	F	G	H	J	K	L	M	N	P
1.5”	ø 0.875”	Ø1.875”	241	Ø19.3	Ø45	Ø46	38	63.5	69.5	3/4"- 16UNF	23.5	52	38	20	47	9/16- 18UNF
2”	Ø1.125”	Ø2.375”	311	Ø25.5	Ø54	Ø50.8	50.8	84.5	95.7	1.0"- 12 UNF	29	66.7	54	29	62.4	3/4"- 16UNF
2.5”	Ø1.5”	Ø2.875”	311	Ø25.5	Ø54	Ø50.8	50.8	84.5	95.9	1.1/8"- 12 UNF	29	66.7	54	29	62.4	3/4"- 16UNF
3.0”	Ø1.5”	Ø3.375”	311	Ø25.5	Ø54	Ø50.8	50.8	84.5	89.5	1.1/8"- 12 UNF	29	66.7	47.6	29	66.6	3/4"- 16UNF
3.5”	Ø1.75”	Ø3.875”	311	Ø25.5	Ø64	Ø50.8	55	84	88	1.3/8"- 12 UNF	29	72	47.6	29	66.6	3/4"- 16UNF
4.0”	Ø2.0”	Ø4.5”	311	Ø25.5	Ø64	Ø63.5	55	84	89	1.3/8"- 12 UNF	29	72	44.5	29	66.6	3/4"- 16UNF

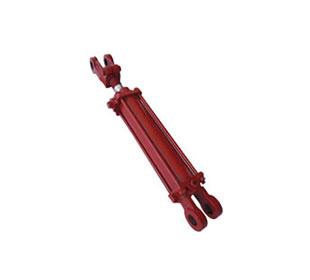

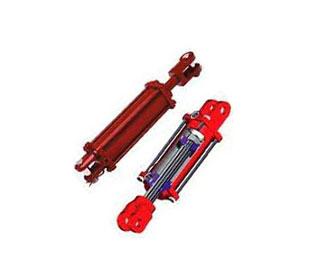

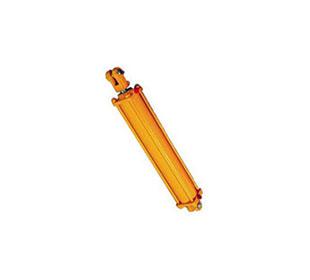

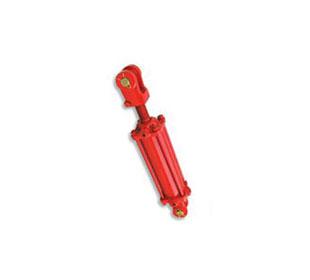

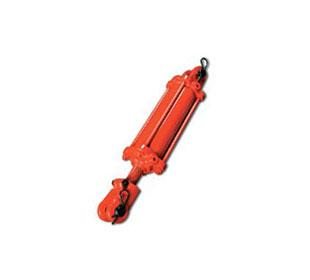

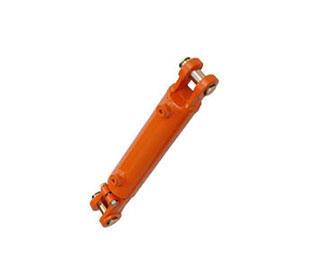

Tie-rod Cylinders

SEA Hydro Systems made Tie Rod cylinders can be both made as per NFPA specification or custom specification. Tie rod cylinders are used primarily for Agricultural & related equipment and various other industrial equipments. These cylinders are subjected to maximum threshold capacity for an unbeatable product quality

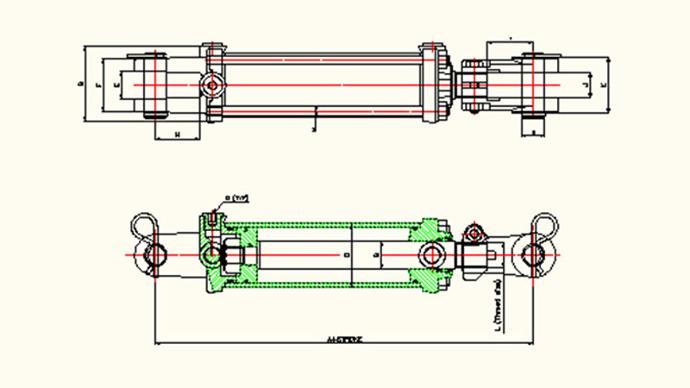

BORE	A	B	C	D	E	F	G	H	I	J	K	L	M	N
2"	260	ø 1.125"	ø 2.375"	3/4"- 16 UNF	28.6	59.6	75.4	50.8	54	28.6	63.5	1.1/8" - 12 UNF	8.9	25.4
2.5"	260	ø 1.25"	ø 2.875"	3/4"- 16 UNF	28.6	60.5	84.1	50.8	54	28.6	63.5	1.1/8" - 12 UNF	8.9	25.4
3"	260	ø 1.5"	ø 3.375"	3/4"- 16 UNF	28.6	63.5	103.2	50.8	54	28.6	69	1.1/4" - 12 UNF	10.8	25.4
3.5"	260	ø 1.75"	ø 3.875"	3/4"- 16 UNF	28.6	66	115.9	50.8	54	28.6	69	1.1/4" - 12 UNF	12.6	25.4
4"	260	ø 2.0"	ø 4.5"	3/4"- 16 UNF	28.6	67.6	133.4	50.8	54	28.6	69	1.1/4" - 12 UNF	14.7	25.4

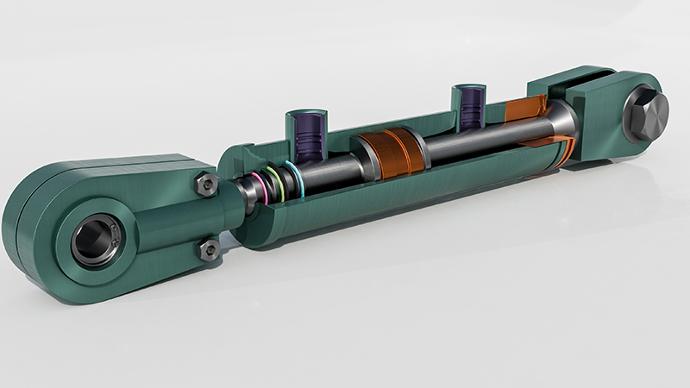

Custom Cylinders

SEA Hydro Systems also designs and manufactures many other cylinder types like Piggyback cylinders, Integrated Valve cylinders, Dump-Hoist cylinders, Telescopic cylinders or if you have something on your mind, experts at SEA Hydro System can design it for you.

SEA Hydro Systems has a huge catalogue of choices for your needs of quality bespoke hydraulic cylinders or we can tailor it further if you need something more specific. For more information on our standard and custom package options, please visit our website at www.seahydrosys.com or contact us at sales@seahydrosys.com and we shall Endeavour to offer you best solutions for your hydraulic cylinder needs.

Custom Cylinder Worksheet
